Quick start

NOTE: You can find this whole page as a jupyter notebook and try it out yourself •⩊• here: notebooks/Usage_example_of_awkward_zipper.ipynb

Before even starting to work with awkward-zipper we have to use uproot library to load the data. First we load our root file:

# Create a TTree from root
tree = uproot.open("nano_dy.root")["Events"]

Then we use TBranch.arrays function to conver the TTree format we got form the root file into an awkward array:

# TTree -> awkward.Array[awkward.Record[str, awkward.Array]]
array = tree.arrays(ak_add_doc=True)

Finally we can pass the resulting array to awkward-zipper.

from awkward_zipper import NanoAOD
restructure = NanoAOD(version="latest")
result = restructure(array)

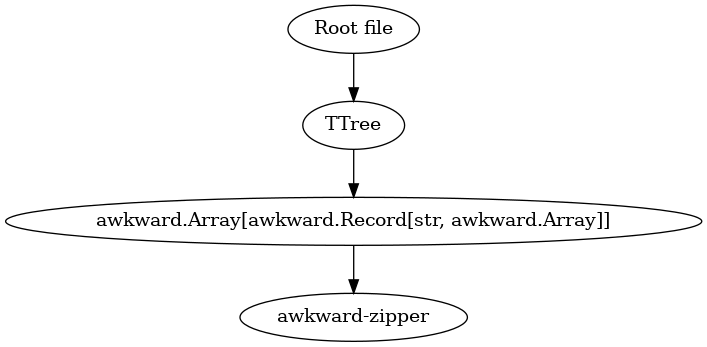

This whole process we can picture on a diagram:

How awkward-zipper works internally

Now let’s see how awkward-zipper restructures arrays internally, using Nanoaod schema(layout) as an example. The whole process can be broken down into two big steps.

Adding new fields

Any branches named n{name} are assumed to be counts branches and can converted to offsets using this helper function:

counts2offsets(counts)
Counts [5, 8, 5, 3, 5]
Result [0, 5, 13, 18, 21, 26]

Any local index branches with names matching {source}_{target}Idx* are converted to global indexes for the event chunk (postfix G). All local indices and their correlating global indices are taken from awkward_zipper.NanoAOD.all_cross_references dictionary.

local2globalindex(index, counts)
Index array [[], [1], [], [2, 3]] Counts array [8, 7, 4, 7]
Result [[], [9], [], [21, 22]]

Any nested_items are constructed, if the necessary branches are available. All the input indices are taken from the awkward_zipper.NanoAOD.nested_items dictionary.

nestedindex(indices)
First index array [[0, 2, 4], [8, 6]] Second index array [[1, 3, 5], [-1, 7]]
Result [[[0, 1], [2, 3], [4, 5]], [[8, -1], [6, 7]]]

In the same manner any awkward_zipper.NanoAOD.nested_index_items and awkward_zipper.NanoAOD.special_items are constructed, if the necessary branches are available. You can find all these functions in the documentation for awkward_zipper.kernels

Grouping(zipping) all the fields together

From those arrays, NanoAOD collections are formed as collections of branches grouped by name, where:

• one branch exists named name and no branches start with name_, interpreted as a single flat array;

Example: Each event has only one Run Id. Interpreted flat array will look look like this: <Array [1, 1, 1, 1, 1, 1, …, 1, 1, 1, 1, 1] type=’40 * uint32 [parameters={“__doc__”: “run/i”}]’>

• one branch exists named name, one named n{name}, and no branches start with name_, interpreted as a single jagged array;

Example: Each event has a flat array of PS Weights. Interpreted single jagged array will look look like this: <Array [[1.01, 1.26, 0.99, 0.791], [2.06, 0.872, 0.535, 0.962], [1.07, 0.887, 0.933, 1.02], [0.833, 0.827, 1.15, 1.1], …] type=’40 * [var * float32, …’>

• no branch exists named {name} and many branches start with name_*, interpreted as a flat table; or

Example: Each event has a SINGLE Generator. Each Generator consists of a record of Generator parameters. These parameters can be scalars or flat arrays. Interpreted flat table will look look like this: <Array [{id2: -1, x1: 0.214, xpdf2: 0, xpdf1: 0, weight: 2.63e+04, id1: 1, …}, {id2: 1, x1: 0.0142, xpdf2: 0, xpdf1: 0, weight: 2.63e+04, id1: -1, …}, …] type=’40 * NanoCollection[xpd…’>

• one branch exists named n{name} and many branches start with name_*, interpreted as a jagged table.

Example: Each event has an array of Jets. Each Jet consists of a record of Jet parameters. These parameters can be scalars or flat arrays. Interpreted jagged table will look look like this: <Array [[Jet, …, Jet], [Jet, …], [Jet, …], …] type=’40 * var * Jet[area: f…’>

Collections are assigned mixin types according to the mixins awkward_zipper.NanoAOD.mixins mapping. Finally, all collections are then zipped into one NanoEvents record and returned.
